Semi-Automatic Bollard

Name:Semi-automatic rising bollard

Drive unit:Sealing pressure

Lifting height:500mm

Column diameter:168mm, 219mm

Column thickness:6mm

Pre-embedded depth:900mm

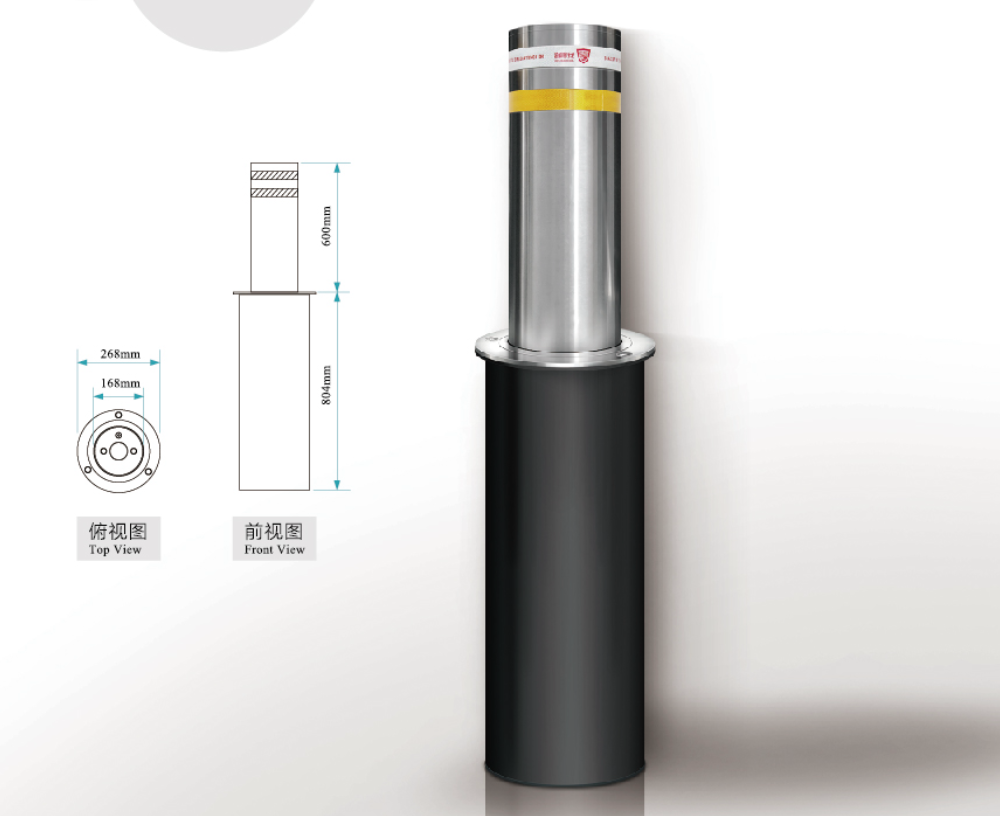

Installation dimensions:500*500*900 (mm)

weight:120kg

Column material:304 stainless steel

Surface treatment:Stainless steel surface brushing treatment

Protection level:IP68

Box material:A3 steel

Operating temperature:-35 degrees Celsius to 75 degrees Celsius

Damage resistance level:M30~M50 (Reinforced)

Reflective strip:4CM double-layer high-strength reflective tape

Impact resistance rating:A 7-ton truck crashed into the pillar at a speed of 80 meters per hour, but the pillar was not damaged.

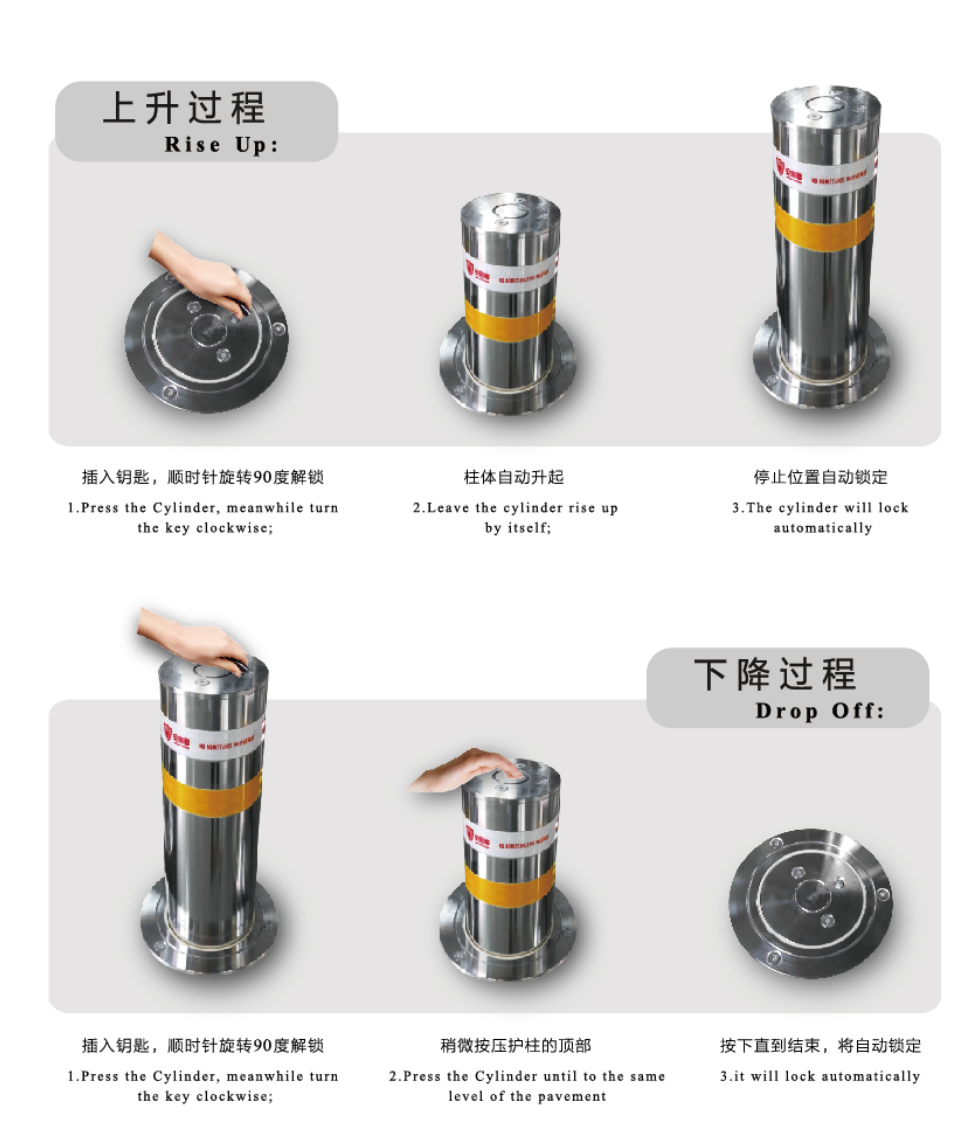

Operation method:Rising column: Insert the key into the lock and turn it; the column will rise automatically.To lower the column: Insert the key into the lock, turn it, and manually apply pressure downwards until the top cover of the column is lowered to the ground level and locked.
